Solar Spring Aerator
Product Description
Solar spring aerator is a landscape aerator, with strong oxygenation capacity and large circulation flow, which is suitable for the purification needs of landscape water bodies in parks, landscape ponds, inland rivers and environmental ecological nature, adding flexibility and cultural atmosphere to landscape water bodies.
Working Princinple
The dome-shaped solar photovoltaic panel connects the submersible pump in the pump compartment under the floating body through a cable, and then combines the intake pipeline and the pump outlet connection pipeline of the submersible pump into the venturi jet around the pump compartment, which can make more lasting and stable use of sunlight, which is conducive to the aerator to aerate more persistently and stably in the water body and form a larger landscape effect with dense nanobubbles.
1- Dome-shaped solar panels;
2- Floating body;
3- Water level line;
4- Nano bubbles;
5- Venturi suction port;
6- Venturi jet;
7- Pump outlet pipeline;
8- Filter hole array;
9- Submersible pump;
10- Water pump chamber;
11- Air inlet;
12- Main air inlet pipeline
Previous

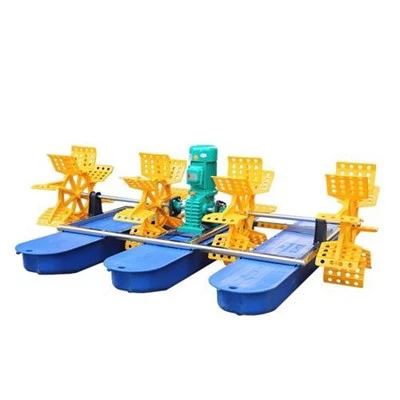

Solar Wtaer Wheel AeratorYou Might Also Like
