As a supplier of ABS submersible mixers, I've had the privilege of witnessing how these machines play a crucial role in various industries, especially in sewage treatment. One question that often pops up is: "How to measure the flow field generated by an ABS submersible mixer?" Well, let's dive right into it.
Why Measuring the Flow Field Matters
Before we get into the measurement methods, it's important to understand why we even bother measuring the flow field. The flow field generated by an ABS submersible mixer affects the efficiency of mixing processes. In sewage treatment plants, for example, proper mixing ensures that chemicals are evenly distributed, bacteria are well - dispersed for biological treatment, and sediment doesn't settle at the bottom of the tanks. If the flow field isn't right, you could end up with inefficient treatment, increased energy consumption, and even equipment damage over time.
Methods for Measuring the Flow Field
1. Tracer Methods
One of the oldest and most straightforward ways to measure the flow field is by using tracer methods. You introduce a tracer substance into the fluid and then track its movement. This could be a dye, a salt solution, or even a radioactive tracer in some cases.
For example, you can inject a colored dye into the water near the mixer. Then, using a series of cameras or visual observations, you can track how the dye spreads over time. The pattern of the dye's dispersion gives you an idea of the flow direction and velocity in different parts of the tank.
However, this method has its limitations. It can be time - consuming, and it might not give you very accurate quantitative data. Also, the tracer substance might interact with the fluid or the tank environment, which could affect the results.
2. Pitot Tubes
Pitot tubes are another common tool for measuring fluid flow. A Pitot tube is a simple device that consists of a tube with a small opening at the end. When placed in the fluid, it measures the total pressure (stagnation pressure) and the static pressure. By subtracting the static pressure from the total pressure, you can calculate the dynamic pressure, which is related to the fluid velocity.
You can move the Pitot tube around the tank at different points and depths to map out the velocity profile of the flow field. The advantage of using Pitot tubes is that they are relatively inexpensive and easy to use. But they have some drawbacks too. They can only measure the velocity at a single point at a time, so it takes a long time to get a full picture of the flow field. And they can be affected by turbulence in the fluid, which might lead to inaccurate measurements.
3. Ultrasonic Flow Meters
Ultrasonic flow meters are a more modern and accurate way to measure the flow field. They work by sending ultrasonic waves through the fluid and measuring how the waves are affected by the fluid's movement. There are two main types of ultrasonic flow meters: transit - time and Doppler.
Transit - time flow meters measure the difference in the time it takes for ultrasonic waves to travel upstream and downstream in the fluid. This time difference is related to the fluid velocity. Doppler flow meters, on the other hand, measure the frequency shift of the ultrasonic waves reflected off particles or bubbles in the fluid. This frequency shift is also related to the fluid velocity.
Ultrasonic flow meters are non - intrusive, which means they don't need to be inserted directly into the fluid. This makes them ideal for measuring the flow field in large tanks or in fluids that are difficult to access. They can provide real - time data and are relatively accurate. However, they can be expensive, and they might not work well in fluids with low particle concentrations or in very turbulent flows.
4. Particle Image Velocimetry (PIV)
Particle Image Velocimetry is a state - of - the - art technique for measuring the flow field. It involves seeding the fluid with small particles and then using a laser and a high - speed camera to take two successive images of the particles. By analyzing the displacement of the particles between the two images, you can calculate the velocity of the fluid at different points in the flow field.
PIV can provide very detailed and accurate information about the flow field, including velocity vectors, vorticity, and turbulence intensity. It can also capture the transient behavior of the flow. But it's a complex and expensive technique that requires specialized equipment and expertise.
Factors Affecting the Flow Field
When measuring the flow field generated by an ABS submersible mixer, it's important to consider the factors that can affect it. These include:
1. Mixer Design
The design of the ABS submersible mixer, such as the blade shape, size, and number of blades, has a significant impact on the flow field. For example, a mixer with larger blades might generate a stronger flow, but it could also create more turbulence. Different mixer designs are suitable for different applications, and you need to choose the right one based on your specific requirements.
2. Tank Geometry
The shape and size of the tank also affect the flow field. A rectangular tank might have different flow patterns compared to a circular tank. The presence of baffles or other internal structures in the tank can also change the flow direction and velocity. For instance, baffles can help to reduce short - circuiting and improve the mixing efficiency.
3. Fluid Properties
The properties of the fluid, such as its viscosity, density, and temperature, can influence the flow field. For example, a more viscous fluid will flow more slowly than a less viscous one. Temperature can also affect the fluid's density and viscosity, which in turn affects the flow behavior.
Importance of Flow Field Measurement for Our ABS Submersible Mixers
As a supplier of ABS submersible mixers, we understand the importance of accurate flow field measurement. It helps us in several ways.
Firstly, it allows us to optimize the design of our mixers. By measuring the flow field, we can identify areas where the mixer performance can be improved. For example, if we find that there are dead zones in the tank where the flow is very weak, we can modify the mixer design to increase the flow in those areas.
Secondly, it helps us to provide better technical support to our customers. When customers have questions about the performance of our mixers, we can use the flow field measurement data to explain how the mixer is working and to offer solutions to any problems they might be facing.
Related Products

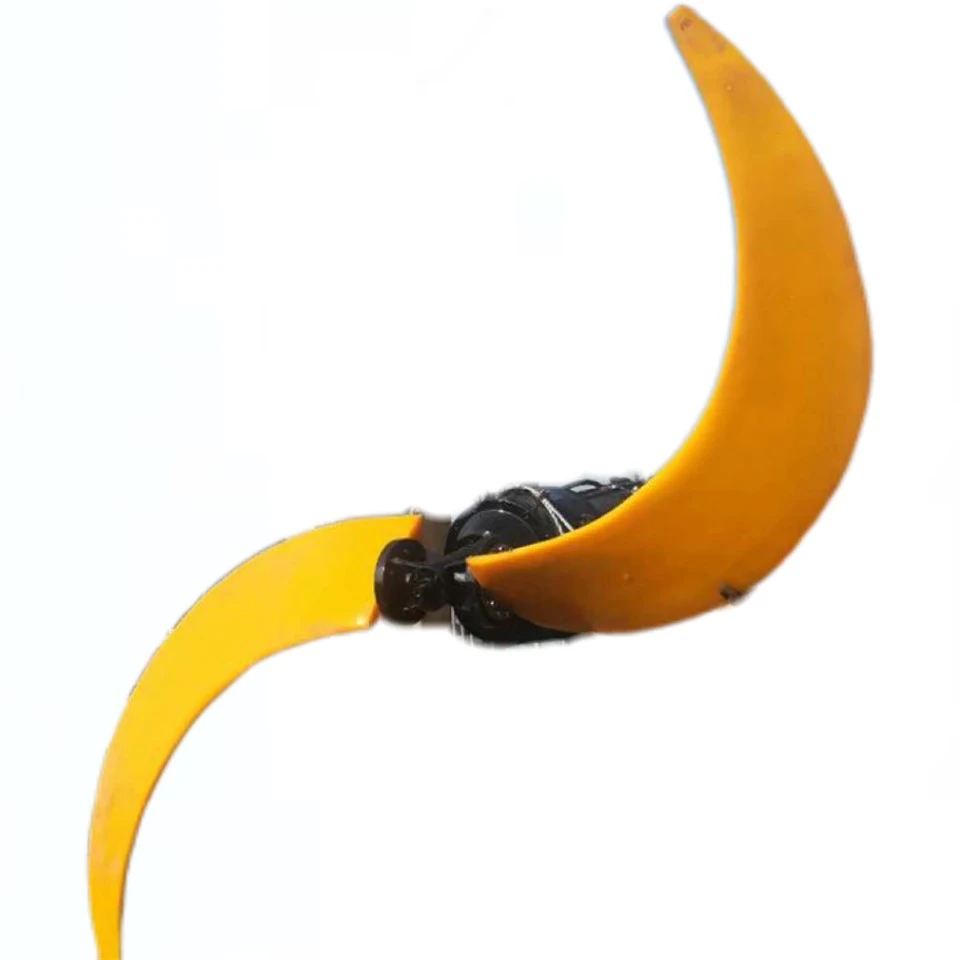

If you're interested in other types of mixers, we also offer Hyperboloid Mixer, Submersible Flow Thruster Qjb, and Submersible Flow Thruster. These products have their own unique features and are suitable for different applications.
